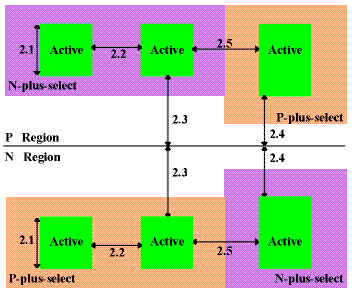

SCMOS Layout Rules - Active
Rule
Description
Lambda
2.1
Minimum width
3
2.2
Minimum spacing
3
2.3
Source/drain active to well edge
5
[SUBM 6]
2.4
Substrate/well contact active to well edge
3
2.5
Minimum spacing between active of different implant
0 or 4
