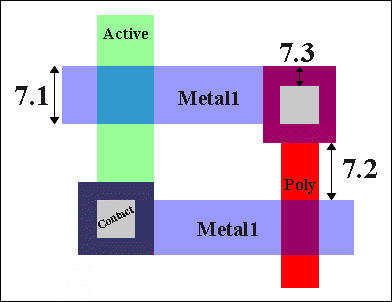

SCMOS Layout Rules - Metal1
Rule
Description
Lambda
7.1
Minimum width
3
7.2.a
Minimum spacing
3
7.2.b
Minimum tight metal spacing
(only allowed between minimum width wires -
otherwise, use regular spacing rule)
2
7.3
Minimum overlap of any contact
1
