SCMOS Layout Rules - Select

Rule Description Lambda

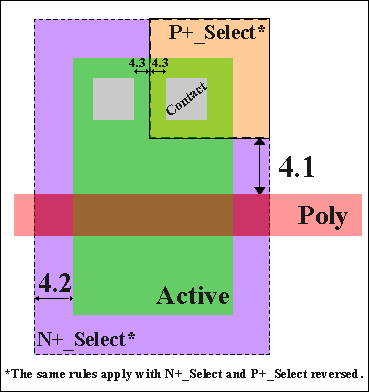

4.1 Minimum select spacing to channel of transistor
to ensure adequate source/drain width
3
4.2 Minimum select overlap of active 2
4.3 Minimum select overlap of contact 1
4.4 Minimum select width and spacing
(Note: P-select and N-select may be coincident,
but must not overlap) (not illustrated)
2
