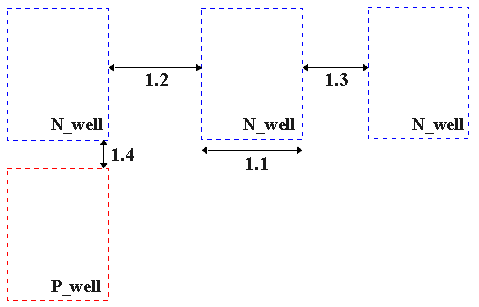

SCMOS Layout Rules - Well

Rule Description Lambda
1.1 Minimum width 10
[SUBM 12]
1.2 Minimum spacing between wells at different potential 9
[SUBM 18]
1.3 Minimum spacing between wells at same potential 0 or 6
1.4 Minimum spacing between wells of different type
(if both are drawn)
0
